Machine Setup and Changeover: SMED and Faster Turnarounds

Internal vs External Setup

The core SMED idea is simple: any setup step that can be done while the machine is still running is external, and everything else is internal. Moving work from internal to external, and preparing tooling in advance, is where most of the time savings come from.

Standardize and Streamline

• Prepared tooling: dies, fixtures, and tools staged before the machine stops.
• Standard sequence: a defined, repeatable order removes hunting and rework.
• Quick clamping: replacing threaded fasteners with quick clamps saves minutes.

A Lean Core Skill

Changeover reduction supports lean manufacturing and pairs with workforce simulation.

Preparing Before the Line Stops

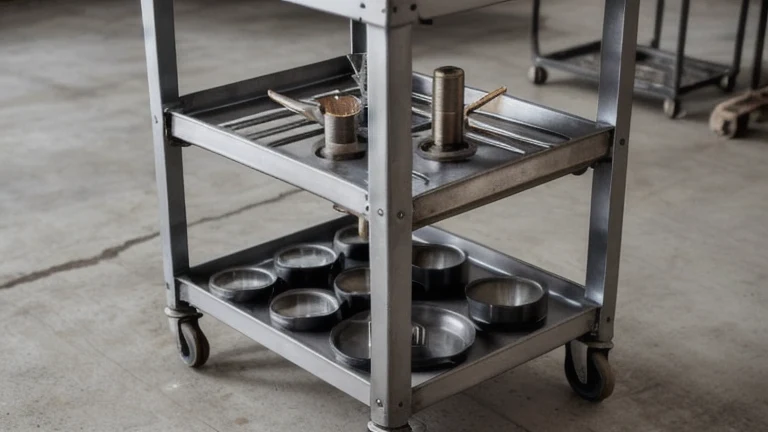

Gather tools, materials, programs and paperwork before the machine stops so downtime is used only for tasks that cannot be done earlier. A staged cart or checklist prevents trips for missing items.

Verify the next job's requirements ahead of time.

First Piece Approval

After changeover, produce a first piece and inspect it against the specification before full production. Catching a problem here avoids running scrap.

Record adjustments made to reach approval.

Measuring and Reducing Changeover Time

Time each step, separate internal and external tasks and look for waste. Small improvements repeated across many changeovers add up. Involve operators in the analysis.

Standardize the improved method.

Standard Work for Setup

Written steps and checklists let any trained operator perform the changeover the same way. Standard work reduces variation between shifts.

Include photos of correct setups.

Tooling and Staging

Keeping tools, fixtures and materials near the machine cuts wasted motion. Carts and shadow boards help.

Small layout changes can save minutes.

Training and Engagement

Operators know where time is lost. Ask for their ideas and let them test improvements.

Recognize gains to sustain enthusiasm.

What Changeover Costs

Changeover is the work required to convert equipment from producing one product to producing another, and the time it consumes is capacity that no longer exists.

Long changeovers drive larger batch sizes, which drives inventory, which conceals quality problems and consumes working capital.

Reducing changeover time is therefore not only an efficiency measure but the enabler of smaller batches and faster response to demand.

Internal and External Work

The central distinction is between work that requires the machine stopped and work that can be done while it is still running.

Converting internal work to external, by preparing tools, materials and fixtures in advance, typically produces the largest single reduction.

Most organizations find that a substantial portion of their stopped time is spent on activity that never required the machine to be stopped.

Streamlining the Stopped Work

Standardizing fixtures and fastener types, using quick release mechanisms and eliminating threaded fasteners where possible removes minutes from every changeover.

Preset positions, stops and reference marks eliminate the trial adjustment that frequently consumes more time than the physical change.

Parallel work by two people, with defined roles, can halve elapsed time even when it does not reduce total labor.

First Part Quality

A changeover is not complete when the machine runs. It is complete when it produces a conforming part, and adjustment cycles after startup are part of the changeover cost.

Documented settings, verified tooling condition and first article inspection reduce the number of adjustment cycles required.

Recording the settings that produced a good part makes the next changeover repeatable rather than a re discovery.

Documentation and Standard Work

Written changeover procedures with sequence, settings and checks convert an individual skill into an organizational capability.

Without documentation, changeover time depends on who is working, and that variation is invisible in monthly averages.

Video review of an actual changeover is the most effective way to identify wasted motion, searching and waiting.

Safety and Training

Changeover involves guard removal, energy isolation, manual handling of tooling and work inside machines, and it is a period of elevated injury risk.

Lockout requirements, guard replacement verification and safe handling of heavy tooling apply and are frequently compressed under time pressure.

Simulation and structured practice let operators rehearse sequences and settings without consuming production time, and employer procedures and applicable regulations govern the work.

Common Mistakes and How to Avoid Them

Frequent errors include leaving preparation work inside the stopped time, bypassing lockout under schedule pressure, relying on trial adjustment instead of preset positions and measuring changeover as machine start rather than first good part.

Supervisors can help by making it acceptable to pause and ask. A culture where questions are treated as competence rather than weakness produces fewer errors in changeover.

How Employers Evaluate Readiness

Operations assess changeover through elapsed time from last good part to next good part, variation between shifts and operators, scrap generated during startup and equipment availability overall.

Keeping Skills Current

Tooling, products and equipment condition change. Reviewing the standard procedure after tooling or product changes prevents working to a sequence that no longer matches the setup.

Planning and Preparation

Preparation includes staging tooling and materials before the machine stops, verifying tooling condition, confirming documented settings, assigning roles and completing energy isolation before work begins.

Documentation That Holds Up

Recorded settings, changeover times, first article inspection results and updated standard procedures are what make performance comparable and allow the next changeover to start from the last one.
